Description
Manufacturer’s link for full details.

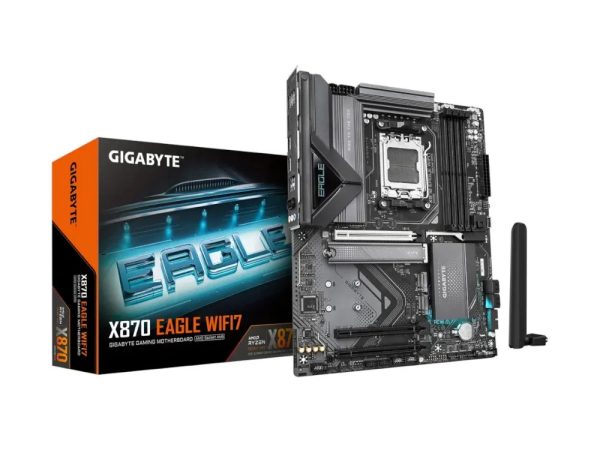

Gigabyte X870 EAGLE WIFI7 AMD AM5 ATX Motherboard 4x DDR5~256GB,3x PCIe x16, 3x M.2, 4x SATA 6, 4x USB 3.2, 4x USB2.0, 2x USB-C
CPU
AMD Socket AM5, support for:
AMD Ryzen‚Ñ¢ 9000 Series Processors/
AMD Ryzen‚Ñ¢ 8000 Series Processors/
AMD Ryzen‚Ñ¢ 7000 Series Processors
Chipset
AMD X870
Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
– 2 x USB4¬Æ USB Type-C¬Æ ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz
Integrated Graphics Processor with AMD Radeon‚Ñ¢ Graphics support:
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Audio
Realtek® Audio CODEC
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen‚Ñ¢ 900/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen‚Ñ¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen‚Ñ¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
– 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen‚Ñ¢ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen‚Ñ¢ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen‚Ñ¢ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU+ASMedia USB4® controller:
Р2 x USB4® USB Type-C® ports on the back panel
CPU:
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
– 1 x USB 3.2 Gen 1 port on the back panel
CPU+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports on the back panel
Chipset:
– 1 x USB Type-C¬Æ port with USB 3.2 Gen 2×2 support, available through the internal USB header
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
– 4 x USB 2.0/1.1 ports available through the internal USB headers
