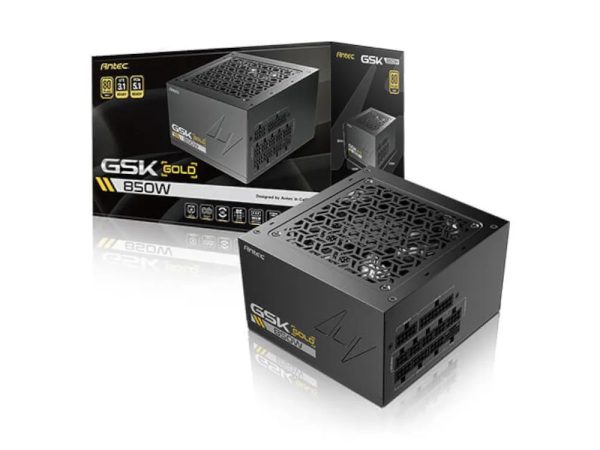

Antec GSK850 ATX3.1 PSU

Manufacturer’s link for full details.

Antec GSK850 V2: ATX12V 3.1, 850W, Full-Modular, 80+ Gold, 120mm fan, 24-pin, 12V-2×6, 2×CPU, 4×PCI-E, 8×SATA, 4×Molex, 140×150×86mm, 10Y warranty

Introducing our GSK ATX3.1 power supply, designed with the ultimate performance and stability in mind for the gaming and enthusiast market. With advanced features like ATX 3.1, PCIe 5.1, high-quality JP capacitors, unparalleled stability, and 80 PLUS® Gold-certified efficiencies, you can expect brilliant performance from your system. The PhaseWave™ Design ensures steady power output, while the 120mm FDB Silent Fan offers quiet cooling. The power supply is also 100% modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ suite of industrial-grade protections provides safe and reliable power delivery in any environment. The GSK ATX3.1 is the perfect choice for building a reliable and efficient PC system for gamers and professionals alike.

SPECIFICATIONS
Model GSK850 V2
Safe Model X7000A618XU-24V2
Type ATX 12V 3.1
Dimension 140(L)*150(W)*86(H)
Modular Full-Modular
Warranty 10 years
Input Voltage 100V-240V
Input Current 10A Max
Input Frequency Range 50Hz-60Hz
PFC Active PFC
Power Good Signal 100-150ms
Protection OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Output Capacity 850W
Operation Temperature 0~40°C
Regulatory TUV / CB / CE / KC / UKCA / RCM / cTUVus / FCC / ICES / BSMI / 3C / BIS
Fan 120mm Silent Fan
Certifications 80 Plus Gold
Unit Box Dimensions 296.5(L)*203(W)*130(H) (mm)
Shipping Box Dimensions 680(L)*325(W)*228(H) (mm)
Net Weight 2.50kg
Gross Weight 2.72kg

Connector
1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.1 12V-2×6
2 x 8(4+4)pin CPU
4 x 8(6+2) Pin PCI-E
8 x SATA
4 x Molex
