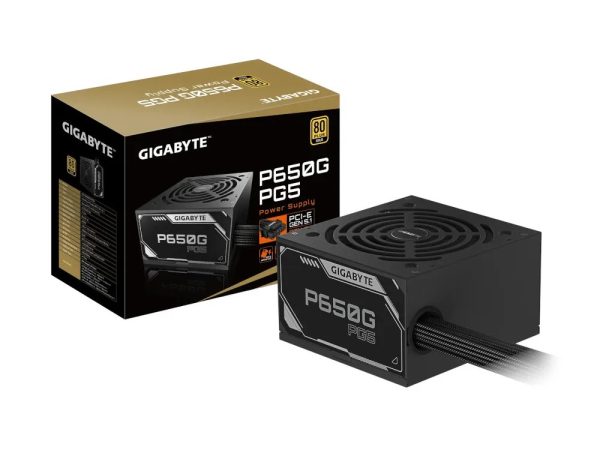

Gigabyte P650G PCIE 5.1 PSU

Manufacturer’s link for full details.

Gigabyte GP-P650G PCIE 5.1, 650W, ATX12V v3.1, 80+Gold, 90%, 120mm HYB, PFC>0.9, 100-240V, 10-6A, 60-50Hz, MTBF>100k, OVP/OPP/SCP/UVP/OCP/OTP, PCIe5.1

Specification
Model
GP-P650G PG5‚Äã

Type
Intel Form Factor ATX 12V v3.1

PFC
Active PFC(>0.9 typical)

Input Voltage
100-240 Vac

Input Current
10-6A

Input Frequency
60-50 Hz

Output Capacity
650W

Dimensions
150 x 140 x 86 mm

Fan Type
120mm HYB Fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protections
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
100-150ms

Hold Up Time
>17ms

Cable Type
Embossed, All black

Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 1 : 600mm + 150mm*1
PCI-e 16 Pin x 1: 500mm*1
PCI-e 6+2 Pin x 2 : 500mm+150mm*1
SATA x 6 : 420mm+150mm+150mm*2
4 Pin Peripheral x 3 : 420mm+150mm+150mm*1
