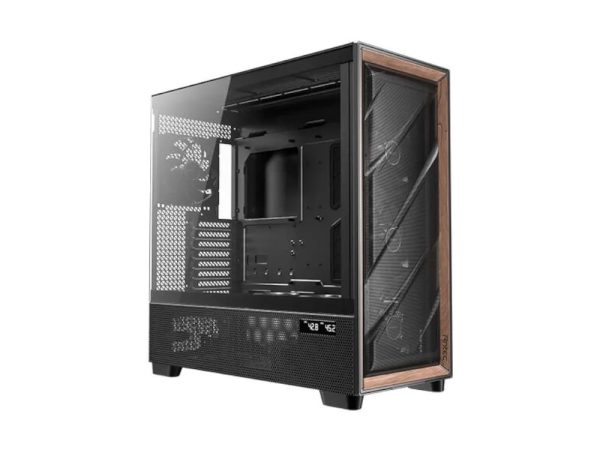

Antec Flux Pro Window 6xfans E-ATX PC Case

Manufacturer’s link for full details.

Antec Flux Pro EUV – Black, Full Tower, E-ATX/ATX/Micro-ATX/ITX, Tempered Glass, Wood Front, USB-C, 6× PWM Fans, 2Yr Wty.

Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.

Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Flux Vertical Cooling
Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics card.

Flux Horizontal Cooling
Air intake via the front mesh provides smooth venting channel throughout the case.

Premium Wood
Front panel is crafted with a combination of metal mesh and wood (walnut) to create a high-quality texture with different materials, integrating seamlessly into your home design.

SPECIFICATIONS
main spec
Dimensions 530 x 245 x 545 mm (DWH)
Form Factor Full Tower
Materials Steel + Plastic + Glass + Wood
Mainboard Support E-ATX (≤285mm), ATX, Micro-ATX, ITX
Front Access & Controls Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack, Temp. Display Switch x 1
Side Panel 4mm Tempered Glass

Drive Bays
Expansion Slots 8
3.5′ /2.5′ 4/4
2.5′ 2

Fan Support
Front 3 x 120mm / 3 x 140mm
Top 3 x 120mm / 3 x 140mm
Power Supply Shroud 3 x 120mm
Bottom 2 x 120mm / 2 x 140mm
Rear 1 x 120mm / 1 x 140mm
Included Fan(s) 3 x 140mm Tranquil PWM fans in front + 2 x 120mm P12R PWM reverse fans on PSU shroud
+ 1 x 140mm Tranquil PWM fan in rear

Radiator Support
Front 120 / 140 / 240 / 280 / 360 / 420mm
Top 120 / 140 / 240 / 280 / 360 / 420mm
Power Supply Shroud 120 / 240 / 360mm
Bottom 120 / 240mm
Rear 120 / 140mm

Clearance
Max GPU Length ≤ 455mm
Max CPU Cooler Height ≤ 190mm
Max PSU Length (Include cable) ≤ 180 / 300mm (with HDD)
(Include cable) ≤ 470mm (without HDD)
(Not Include cable) ≤ 180mm (Side Mount)

Miscellaneous
Dust Filter Bottom
Net Weight 13.60 Kg
Gross Weight 16.65 Kg
Warranty 2 Years
UPC# 0-761345-10154-7 FLUX PRO_EUV
