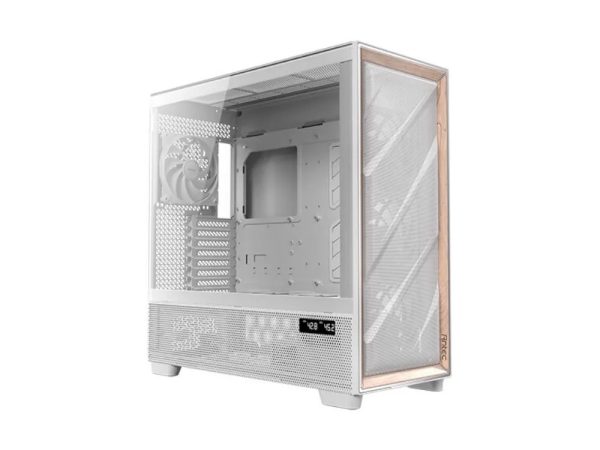

Antec Flux Pro Window 6xfans E-ATX White PC Case

Manufacturer’s link for full details.

Antec Flux Pro EUV – White, Full Tower, E-ATX/ATX/Micro-ATX/ITX, Tempered Glass, Wood Front, USB-C, 6× PWM Fans, 2Yr Wty

Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.

Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

SPECIFICATIONS
main spec
Dimensions 530 x 245 x 545 mm (DWH)
Form Factor Full Tower
Materials Steel + Plastic + Glass + Wood
Mainboard Support E-ATX (≤285mm), ATX, Micro-ATX, ITX
Front Access & Controls Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack, Temp. Display Switch x 1
Side Panel 4mm Tempered Glass

Drive Bays
Expansion Slots 8
3.5′ /2.5′ 4/4
2.5′ 2

Fan Support
Front 3 x 120mm / 3 x 140mm
Top 3 x 120mm / 3 x 140mm
Power Supply Shroud 3 x 120mm
Bottom 2 x 120mm / 2 x 140mm
Rear 1 x 120mm / 1 x 140mm
Included Fan(s) 3 x 140mm Tranquil PWM fans in front + 2 x 120mm P12R PWM reverse fans on PSU shroud
+ 1 x 140mm Tranquil PWM fan in rear

Radiator Support
Front 120 / 140 / 240 / 280 / 360 / 420mm
Top 120 / 140 / 240 / 280 / 360 / 420mm
Power Supply Shroud 120 / 240 / 360mm
Bottom 120 / 240mm
Rear 120 / 140mm

Clearance
Max GPU Length ≤ 455mm
Max CPU Cooler Height ≤ 190mm
Max PSU Length (Include cable) ≤ 180/300mm (with HDD)
(Include cable) ≤ 470mm (without HDD)
(Not Include cable) ≤ 180mm (Side Mount)

Miscellaneous
Dust Filter Bottom
Net Weight 13.60 Kg
Gross Weight 16.65 Kg
Warranty 2 Years
UPC# 0-761345-10156-1 FLUX PRO White_EUV
