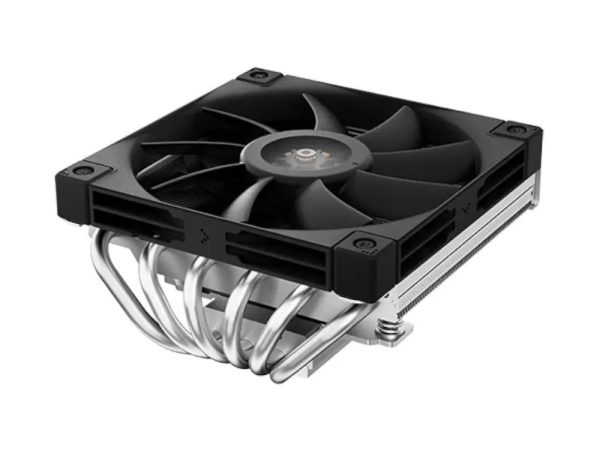

DeepCool AN600 Top Flow Low-profile Air CPU Cooler

Manufacturer’s link for full details.

The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.

Stylish modern minimalist design
180W cooling power
6 heat pipe design
Balanced two-way heat pipe technology
Full ITX motherboard compatibility
FT1215 High Performance FDB PWM Fan
Low noise adapter cable
Full metal mounting bracket
Quick installation process

Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions 122×120×67 mm(L×W×H)
Heatsink Dimensions 121×120×52 mm(L×W×H)
Net Weight 628 g
Heatpipe √ò6 mm×6 pcs
Fan Dimensions 120×120×15 mm(L×W×H)
Fan Speed 500~1850 RPM±10%
Fan Airflow 61.56 CFM
Fan Air Pressure 1.97 mmAq
Fan Noise ≤24.4 dB(A)
Fan Speed (with LSP) 500~1250 RPM±10%
Fan Airflow (with LSP) 41.51 CFM
Fan Air Pressure (with LSP) 1.19 mmAq
Fan Noise (with LSP) ≤20 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.27 A
Fan Power Consumption 3.24 W
LED Type White LED
