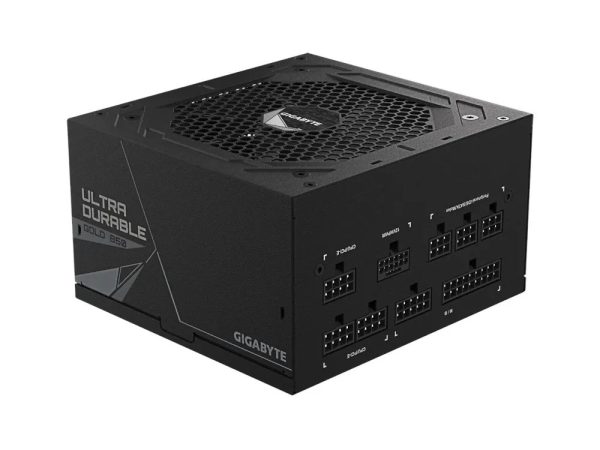

Gigabyte UD850GM PG5 2.0 PSU

This listing is for the 850W Gold – Gigabyte UD850GM PG5 2.0 PSU. Full specifications are listed below.

Compare the Gigabyte UD850GM with other ATX Power Supplies at Cobra Tech. Need help choosing? Contact Cobra Tech support at sale@cobra-tech.com.au, 8am–8pm.

Gigabyte UD850GM specifications & details

Manufacturer’s link for full details.

Gigabyte UD850GM PG5 2.0 850W ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours

Key Features:
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCle Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
5 years warranty (Adjusted according to different regions)

Specification:
Model GP-UD850GM PG5
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 12-6A
Input Frequency 60-50 Hz
Output Capacity 850W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing(HYB)fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 12+4 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
