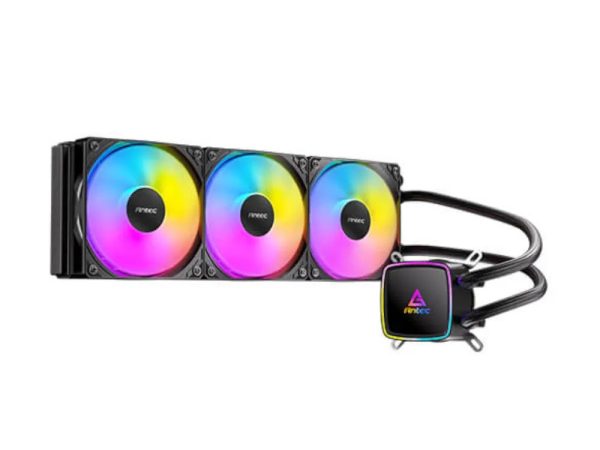

Antec Ultra 360 ARGB 360mm AIO

Manufacturer’s link for full details.

Antec Ultra 360 ARGB Black

Mirror Lighting Pump
The mirror lighting pump head design delivers outstanding cooling performance while creating layered, multi-angle lighting effects that add a chic touch to your build.

PWM ARGB Fan
Comes with powerful 120mm ARGB PWM radiator fans, providing practical functionality and strong cooling performance.

Highly Efficient Cooling Pump
Provides highly efficient cooling at all loads.

Superior Fin Density
Massive 13 fins dissipate heat rapidly.

EVEN COOLING SEALED TO LAST
A 16mm cooling core delivers balanced flow and even temperatures while reducing stagnation and buildup.

IIR-EPDM Reinforced Cooling Tubing
High-airtightness tubing reduces coolant permeation and evaporation to maintain stable fluid levels.

SPECIFICATIONS
Pump
Pump Dimensions 74.5*71.5*50.5mm
Radiator Dimensions 397*120*27 mm
Rating Voltage DC 12 V
Minimum Startup Voltage ‚â•6.5 V
Fan Speed 2600±10% RPM
Rated Current 0.35 A
Consumed Power 4.2 W
Flow Rate ≤2000 mL/min
Water Pressure 2M
Operation Temperature -10°C ~ +60°C
Noise Level ≤23 dB(A)
Lifespan 40,000 hours
Connector Pump: 3-pin | LED: 3-pin

Fan
Fan Type PWM ARGB Fan
Dimensions 120*120*25 mm
Bearing Type Hydraulic Bearing
LED Type Addressable RGB
Fan Speed 800±200~1800±10% RPM
Airflow 67.62 CFM (max.)
Air Pressure 2.09 mmH‚ÇÇO (max.)
Fan Noise Level 33.05 dB(A)
Lifespan 40,000 hours
Connector PH2.0 7pin (PWM+ARGB)
Rated Voltage FAN: DC 12 V | LED: DC 5 V
Operation Voltage FAN: DC 7-13.2 V | LED: DC 4.5-5.5 V
Rated Current FAN : 0.35 A | LED : 0.18 A

Socket Compatibility Intel : LGA 115X（1200）/ 1366 / 1700（1851）/ 20XX
AMD : AM3 / AM4 / AM5
Warranty 2 Years
Net Weight 1.3Kg
Gross Weight 2.0Kg
UPC 0-761345-40088-6
